SQL Plan Management (Part 3 of 4): Evolving SQL Plan Baselines

In the example in Part 2, we saw that the optimizer used an accepted plan instead of a brand new plan. The statement has two plans in its plan history, but only one is accepted and thus in the SQL plan baseline:

SQL> select sql_text, plan_name, enabled, accepted from dba_sql_plan_baselines;

SQL_TEXT                                 PLAN_NAME                      ENA ACC
---------------------------------------- ------------------------------ --- ---
select p.prod_name, s.amount_sold, t.cal SYS_SQL_PLAN_fcc170b08cbcb825  YES NO
endar_year
from sales s, products p, times t
where s.prod_id = p.prod_id
  and s.time_id = t.time_id
  and p.prod_id < :pid

select p.prod_name, s.amount_sold, t.cal SYS_SQL_PLAN_fcc170b0a62d0f4d  YES YES
endar_year
from sales s, products p, times t
where s.prod_id = p.prod_id
  and s.time_id = t.time_id
  and p.prod_id < :pid

Non-accepted plans can be verified by executing the evolve_sql_plan_baseline function. This function will execute the non-accepted plan and compare its performance to the best accepted plan. The execution is performed using the conditions (e.g., bind values, parameters, etc.) in effect at the time the non-accepted plan was added to the plan history. If the non-accepted plan's performance is better, the function will make it accepted, thus adding it to the SQL plan baseline. Let's see what happens when we execute this function:

SQL> var report clob;

SQL> exec :report := dbms_spm.evolve_sql_plan_baseline();

PL/SQL procedure successfully completed.

SQL> print :report

REPORT
-------------------------------------------------------------------------------

-------------------------------------------------------------------------------
                        Evolve SQL Plan Baseline Report
-------------------------------------------------------------------------------

Inputs:
-------
  SQL_HANDLE =
  PLAN_NAME  =
  TIME_LIMIT = DBMS_SPM.AUTO_LIMIT
  VERIFY     = YES
  COMMIT     = YES

Plan: SYS_SQL_PLAN_fcc170b08cbcb825
-----------------------------------
  Plan was verified: Time used .1 seconds.
  Passed performance criterion: Compound improvement ratio >= 10.13
  Plan was changed to an accepted plan.

                      Baseline Plan      Test Plan     Improv. Ratio
                      -------------      ---------     -------------
  Execution Status:        COMPLETE       COMPLETE
  Rows Processed:               960            960
  Elapsed Time(ms):              19             15              1.27
  CPU Time(ms):                  18             15               1.2
  Buffer Gets:                 1188            116             10.24
  Disk Reads:                     0              0
  Direct Writes:                  0              0
  Fetches:                        0              0
  Executions:                     1              1

-------------------------------------------------------------------------------
                                 Report Summary
-------------------------------------------------------------------------------
Number of SQL plan baselines verified: 1.
Number of SQL plan baselines evolved: 1.

The plan verification report shows that the new plan's performance was better and so it was made accepted and became part of the SQL plan baseline. We can confirm it by looking in the dba_sql_plan_baselines view:

SQL> select sql_text, plan_name, enabled, accepted from dba_sql_plan_baselines;

SQL_TEXT                                 PLAN_NAME                      ENA ACC
---------------------------------------- ------------------------------ --- ---
select p.prod_name, s.amount_sold, t.cal SYS_SQL_PLAN_fcc170b08cbcb825  YES YES
endar_year
from sales s, products p, times t
where s.prod_id = p.prod_id
  and s.time_id = t.time_id
  and p.prod_id < :pid

select p.prod_name, s.amount_sold, t.cal SYS_SQL_PLAN_fcc170b0a62d0f4d  YES YES
endar_year
from sales s, products p, times t
where s.prod_id = p.prod_id
  and s.time_id = t.time_id
  and p.prod_id < :pid

The SQL plan baseline now has two accepted plans: SYS_SQL_PLAN_fcc170b08cbcb825 is now accepted.

You can either execute the evolve_sql_plan_baseline() function manually or schedule it to run automatically in a maintenance window.

Another way of evolving a SQL plan baseline is to use the SQL Tuning Advisor. Instead of executing evolve_sql_plan_baseline, suppose we start from the original state where we have one accepted and one non-accepted plan:

SQL> select sql_text, plan_name, enabled, accepted from dba_sql_plan_baselines;

SQL_TEXT                                 PLAN_NAME                      ENA ACC
---------------------------------------- ------------------------------ --- ---
select p.prod_name, s.amount_sold, t.cal SYS_SQL_PLAN_fcc170b08cbcb825  YES NO
endar_year
from sales s, products p, times t
where s.prod_id = p.prod_id
  and s.time_id = t.time_id
  and p.prod_id < :pid

select p.prod_name, s.amount_sold, t.cal SYS_SQL_PLAN_fcc170b0a62d0f4d  YES YES
endar_year
from sales s, products p, times t
where s.prod_id = p.prod_id
  and s.time_id = t.time_id
  and p.prod_id < :pid

You can execute the SQL Tuning Advisor on the cursor in the cursor cache:

SQL> var tname varchar2(30);

SQL> exec :tname := dbms_sqltune.create_tuning_task(sql_id => 'bfbr3zrg9d5cc');

PL/SQL procedure successfully completed.

SQL> exec dbms_sqltune.execute_tuning_task(task_name => :tname);

PL/SQL procedure successfully completed.

SQL> select dbms_sqltune.report_tuning_task(:tname, 'TEXT', 'BASIC') FROM dual;

DBMS_SQLTUNE.REPORT_TUNING_TASK(:TNAME,'TEXT','BASIC')
-------------------------------------------------------------------------------
GENERAL INFORMATION SECTION
-------------------------------------------------------------------------------
Tuning Task Name   : TASK_505
Tuning Task Owner  : SH
Workload Type      : Single SQL Statement
Scope              : COMPREHENSIVE
Time Limit(seconds): 1800
Completion Status  : COMPLETED
Started at         : 11/11/2008 16:43:12
Completed at       : 11/11/2008 16:43:13

-------------------------------------------------------------------------------
Schema Name: SH
SQL ID     : bfbr3zrg9d5cc
SQL Text   : select p.prod_name, s.amount_sold, t.calendar_year
             from sales s, products p, times t
             where s.prod_id = p.prod_id
               and s.time_id = t.time_id
               and p.prod_id < :pid

-------------------------------------------------------------------------------
FINDINGS SECTION (1 finding)
-------------------------------------------------------------------------------
1- A potentially better execution plan was found for this statement.

-------------------------------------------------------------------------------
EXPLAIN PLANS SECTION
-------------------------------------------------------------------------------

1- Original With Adjusted Cost
------------------------------
Plan hash value: 2787970893


----------------------------------------------------------------
| Id  | Operation                             | Name           |
----------------------------------------------------------------
|   0 | SELECT STATEMENT                      |                |
|   1 |  NESTED LOOPS                         |                |
|   2 |   NESTED LOOPS                        |                |
|   3 |    HASH JOIN                          |                |
|   4 |     TABLE ACCESS BY INDEX ROWID       | PRODUCTS       |
|   5 |      INDEX RANGE SCAN                 | PRODUCTS_PK    |
|   6 |     PARTITION RANGE ALL               |                |
|   7 |      TABLE ACCESS BY LOCAL INDEX ROWID| SALES          |
|   8 |       BITMAP CONVERSION TO ROWIDS     |                |
|   9 |        BITMAP INDEX RANGE SCAN        | SALES_PROD_BIX |
|  10 |    INDEX UNIQUE SCAN                  | TIME_PK        |
|  11 |   TABLE ACCESS BY INDEX ROWID         | TIMES          |
----------------------------------------------------------------

2- Original With Adjusted Cost
------------------------------
Plan hash value: 2787970893


----------------------------------------------------------------
| Id  | Operation                             | Name           |
----------------------------------------------------------------
|   0 | SELECT STATEMENT                      |                |
|   1 |  NESTED LOOPS                         |                |
|   2 |   NESTED LOOPS                        |                |
|   3 |    HASH JOIN                          |                |
|   4 |     TABLE ACCESS BY INDEX ROWID       | PRODUCTS       |
|   5 |      INDEX RANGE SCAN                 | PRODUCTS_PK    |
|   6 |     PARTITION RANGE ALL               |                |
|   7 |      TABLE ACCESS BY LOCAL INDEX ROWID| SALES          |
|   8 |       BITMAP CONVERSION TO ROWIDS     |                |
|   9 |        BITMAP INDEX RANGE SCAN        | SALES_PROD_BIX |
|  10 |    INDEX UNIQUE SCAN                  | TIME_PK        |
|  11 |   TABLE ACCESS BY INDEX ROWID         | TIMES          |
----------------------------------------------------------------

3- Using SQL Profile
--------------------
Plan hash value: 2361178149


------------------------------------------
| Id  | Operation             | Name     |
------------------------------------------
|   0 | SELECT STATEMENT      |          |
|   1 |  HASH JOIN            |          |
|   2 |   HASH JOIN           |          |
|   3 |    PARTITION RANGE ALL|          |
|   4 |     TABLE ACCESS FULL | SALES    |
|   5 |    TABLE ACCESS FULL  | TIMES    |
|   6 |   TABLE ACCESS FULL   | PRODUCTS |
------------------------------------------

-------------------------------------------------------------------------------


SQL> exec dbms_sqltune.accept_sql_profile(task_name => :tname);

PL/SQL procedure successfully completed.

SQL> select sql_text, plan_name, enabled, accepted from dba_sql_plan_baselines;

SQL_TEXT                                 PLAN_NAME                      ENA ACC
---------------------------------------- ------------------------------ --- ---
select p.prod_name, s.amount_sold, t.cal SYS_SQL_PLAN_fcc170b08cbcb825  YES YES
endar_year
from sales s, products p, times t
where s.prod_id = p.prod_id
  and s.time_id = t.time_id
  and p.prod_id < :pid

select p.prod_name, s.amount_sold, t.cal SYS_SQL_PLAN_fcc170b0a62d0f4d  YES YES
endar_year
from sales s, products p, times t
where s.prod_id = p.prod_id
  and s.time_id = t.time_id
  and p.prod_id < :pid

SQL> select sql_text, type, status from dba_sql_profiles;

SQL_TEXT                                 TYPE    STATUS
---------------------------------------- ------- --------
select p.prod_name, s.amount_sold, t.cal MANUAL  ENABLED
endar_year
from sales s, products p, times t
where s.prod_id = p.prod_id
  and s.time_id = t.time_id
  and p.prod_id < :pid

What we see here is that SQL Tuning Advisor found a tuned plan (that coincidentally happened to be the non-accepted plan in our plan history). When we accepted the recommended SQL profile, the SQL Tuning Advisor created a SQL profile and also changed the non-accepted plan to accepted status, thus evolving the SQL plan baseline to two plans.

Note that the SQL Tuning Advisor may also find a completely new tuned plan, one that is not in the plan history. If you then accept the recommended SQL profile, the SQL Tuning Advisor will create a SQL profile and also add the tuned plan to the SQL plan baseline.

Thus, you can evolve a SQL plan baseline either by executing the evolve_sql_plan_baseline function or by using the SQL Tuning Advisor. New and provably better plans will be added by either of these methods to the SQL plan baseline.

SQL Plan Management (Part 2 of 4): SPM Aware Optimizer

(Keep sending your feedback and questions. We'll address them in Part 4.)

In Part 1, we saw how you can create SQL plan baselines. After you create a SQL plan baseline for a statement, subsequent executions of that statement will use the SQL plan baseline. From all the plans in the SQL plan baseline, the optimizer will select the one with the best cost in the current environment (including bind values, current statistics, parameters, etc.). The optimizer will also generate the best-cost plan that it would otherwise have used without a SQL plan baseline. However, this best-cost plan will not be used but instead added to the statement's plan history for later verification. In other words, the optimizer will use a known plan from the SQL plan baseline instead of a new and hitherto unknown plan. This guarantees no performance regression.

Let's see this plan selection process in action. First, we create a SQL plan baseline by enabling automatic plan capture and executing the query twice:

SQL> alter session set optimizer_capture_sql_plan_baselines = true;

Session altered.

SQL> var pid number
SQL> exec :pid := 100;

PL/SQL procedure successfully completed.

SQL> select p.prod_name, s.amount_sold, t.calendar_year
2    from sales s, products p, times t
3    where s.prod_id = p.prod_id
4      and s.time_id = t.time_id
5      and p.prod_id < :pid;

PROD_NAME AMOUNT_SOLD CALENDAR_YEAR
--------- ----------- -------------
...
9 rows selected.

SQL> select * from table(dbms_xplan.display_cursor('bfbr3zrg9d5cc', 0, 'basic note'));

PLAN_TABLE_OUTPUT
-------------------------------------------------------------------------------
EXPLAINED SQL STATEMENT:
------------------------
select p.prod_name, s.amount_sold, t.calendar_year from sales s,
products p, times t where s.prod_id = p.prod_id and s.time_id =
t.time_id and p.prod_id < :pid

Plan hash value: 2787970893

----------------------------------------------------------------
| Id  | Operation                             | Name           |
----------------------------------------------------------------
|   0 | SELECT STATEMENT                      |                |
|   1 |  NESTED LOOPS                         |                |
|   2 |   NESTED LOOPS                        |                |
|   3 |    HASH JOIN                          |                |
|   4 |     TABLE ACCESS BY INDEX ROWID       | PRODUCTS       |
|   5 |      INDEX RANGE SCAN                 | PRODUCTS_PK    |
|   6 |     PARTITION RANGE ALL               |                |
|   7 |      TABLE ACCESS BY LOCAL INDEX ROWID| SALES          |
|   8 |       BITMAP CONVERSION TO ROWIDS     |                |
|   9 |        BITMAP INDEX RANGE SCAN        | SALES_PROD_BIX |
|  10 |    INDEX UNIQUE SCAN                  | TIME_PK        |
|  11 |   TABLE ACCESS BY INDEX ROWID         | TIMES          |
----------------------------------------------------------------

25 rows selected.

SQL> select p.prod_name, s.amount_sold, t.calendar_year
2    from sales s, products p, times t
3    where s.prod_id = p.prod_id
4      and s.time_id = t.time_id
5      and p.prod_id < :pid;

PROD_NAME AMOUNT_SOLD CALENDAR_YEAR
--------- ----------- -------------
...
9 rows selected.

SQL> alter session set optimizer_capture_sql_plan_baselines = false;

Session altered.

SQL> select sql_text, plan_name, enabled, accepted from dba_sql_plan_baselines;

SQL_TEXT                                 PLAN_NAME                      ENA ACC
---------------------------------------- ------------------------------ --- ---
select p.prod_name, s.amount_sold, t.cal SYS_SQL_PLAN_fcc170b0a62d0f4d  YES YES
endar_year
from sales s, products p, times t
where s.prod_id = p.prod_id
and s.time_id = t.time_id
and p.prod_id < :pid

We can see that a SQL plan baseline was created for the statement. Suppose the statement is hard parsed again (we do it here by flushing the shared pool). Let's turn off SQL plan management and execute the query with a different bind value:

SQL> exec :pid := 100000;

PL/SQL procedure successfully completed.

SQL> alter system flush shared_pool;

System altered.

SQL> alter session set optimizer_use_sql_plan_baselines = false;

Session altered.

SQL> select p.prod_name, s.amount_sold, t.calendar_year
2    from sales s, products p, times t
3    where s.prod_id = p.prod_id
4      and s.time_id = t.time_id
5      and p.prod_id < :pid;

PROD_NAME AMOUNT_SOLD CALENDAR_YEAR
--------- ----------- -------------
...
960 rows selected.

SQL> select * from table(dbms_xplan.display_cursor('bfbr3zrg9d5cc', 0, 'basic note'));

PLAN_TABLE_OUTPUT
-------------------------------------------------------------------------------
EXPLAINED SQL STATEMENT:
------------------------
select p.prod_name, s.amount_sold, t.calendar_year from sales s,
products p, times t where s.prod_id = p.prod_id and s.time_id = t.time_id and
p.prod_id < :pid

Plan hash value: 2361178149

------------------------------------------
| Id  | Operation             | Name     |
------------------------------------------
|   0 | SELECT STATEMENT      |          |
|   1 |  HASH JOIN            |          |
|   2 |   HASH JOIN           |          |
|   3 |    PARTITION RANGE ALL|          |
|   4 |     TABLE ACCESS FULL | SALES    |
|   5 |    TABLE ACCESS FULL  | TIMES    |
|   6 |   TABLE ACCESS FULL   | PRODUCTS |
------------------------------------------

20 rows selected.

We can see that the optimizer selected a different plan because the new bind value makes the predicate less selective. Let's turn SQL plan management back on and re-execute the query with the same bind value:

SQL> alter session set optimizer_use_sql_plan_baselines = true;

Session altered.

SQL> select p.prod_name, s.amount_sold, t.calendar_year
2    from sales s, products p, times t
3    where s.prod_id = p.prod_id
4      and s.time_id = t.time_id
5      and p.prod_id < :pid;

PROD_NAME AMOUNT_SOLD CALENDAR_YEAR
--------- ----------- -------------
...
960 rows selected.

SQL> select * from table(dbms_xplan.display_cursor('bfbr3zrg9d5cc', 0, 'basic note'));

PLAN_TABLE_OUTPUT
-------------------------------------------------------------------------------
EXPLAINED SQL STATEMENT:
------------------------
select p.prod_name, s.amount_sold, t.calendar_year from sales s,
products p, times t where s.prod_id = p.prod_id and s.time_id =
t.time_id and p.prod_id < :pid

Plan hash value: 2787970893

----------------------------------------------------------------
| Id  | Operation                             | Name           |
----------------------------------------------------------------
|   0 | SELECT STATEMENT                      |                |
|   1 |  NESTED LOOPS                         |                |
|   2 |   NESTED LOOPS                        |                |
|   3 |    HASH JOIN                          |                |
|   4 |     TABLE ACCESS BY INDEX ROWID       | PRODUCTS       |
|   5 |      INDEX RANGE SCAN                 | PRODUCTS_PK    |
|   6 |     PARTITION RANGE ALL               |                |
|   7 |      TABLE ACCESS BY LOCAL INDEX ROWID| SALES          |
|   8 |       BITMAP CONVERSION TO ROWIDS     |                |
|   9 |        BITMAP INDEX RANGE SCAN        | SALES_PROD_BIX |
|  10 |    INDEX UNIQUE SCAN                  | TIME_PK        |
|  11 |   TABLE ACCESS BY INDEX ROWID         | TIMES          |
----------------------------------------------------------------

Note
-----
- SQL plan baseline SYS_SQL_PLAN_fcc170b0a62d0f4d used for this statement

29 rows selected.

The note at the bottom tells you that the optimizer is using the SQL plan baseline. In other words, we can see that the optimizer used an accepted plan in the SQL plan baseline in favor of a new plan. In fact, we can also check that the optimizer inserted the new plan into the statement's plan history:

SQL> select sql_text, plan_name, enabled, accepted from dba_sql_plan_baselines;

SQL_TEXT                                 PLAN_NAME                      ENA ACC
---------------------------------------- ------------------------------ --- ---
select p.prod_name, s.amount_sold, t.cal SYS_SQL_PLAN_fcc170b08cbcb825  YES NO
endar_year
from sales s, products p, times t
where s.prod_id = p.prod_id
  and s.time_id = t.time_id
  and p.prod_id < :pid

select p.prod_name, s.amount_sold, t.cal SYS_SQL_PLAN_fcc170b0a62d0f4d  YES YES
endar_year
from sales s, products p, times t
where s.prod_id = p.prod_id
  and s.time_id = t.time_id
  and p.prod_id < :pid

The 'NO' value for the accepted column implies that the new plan is in the plan history but is not available for use until it is verified to be a good plan. The optimizer will continue to use an accepted plan until new plans are verified and added to the SQL plan baseline. If there is more than one plan in the SQL plan baseline, the optimizer will use the one with the best cost under the then-current conditions (statistics, bind values, parameter settings and so on).

When you create a SQL plan baseline for a SQL statement, the SPM aware optimizer thus guarantees that no new plans will be used other than the ones in the SQL plan baseline. This prevents unexpected plan changes that sometimes lead to performance regressions.

Preventing new plans from being used is fine, but what if the new plans are in fact better? In Part 3, we will describe how new and improved plans are added to a SQL plan baseline.

Plan regressions got you down? SQL Plan Management to the rescue!

Part 1 of 4: Creating SQL plan baselines

Do you ever experience performance regressions because an execution plan has changed for the worse? If you have, then we have an elegant solution for you in 11g called SQL Plan Management (SPM). The next four posts on our blog will cover SPM in detail. Let's begin by reviewing the primary causes for plan changes.

Execution plan changes occur due to various system changes. For example, you might have (manually or automatically) updated statistics for some objects, or changed a few optimizer-related parameters. A more dramatic change is a database upgrade (say from 10gR2 to 11g). All of these changes have the potential to cause new execution plans to be generated for many of your SQL statements. Most new plans are obviously improvements because they are tailored to the new system environment, but some might be worse leading to performance regressions. It is the latter that cause sleepless nights for many DBAs.

DBAs have several options for addressing these regressions. However, what most DBAs want is simple: plans should only change when they will result in performance gains. In other words, the optimizer should not pick bad plans, period.

This first post in our series, describes the concepts of SQL Plan Management and how to create SQL plan baselines. The second part will describe how and when these SQL plan baselines are used. The third part will discuss evolution, the process of adding new and improved plans to SQL plan baselines. Finally, the fourth part will describe user interfaces and interactions with other Oracle objects (like stored outlines).

Introduction

SQL Plan Management (SPM) allows database users to maintain stable yet optimal performance for a set of SQL statements. SPM incorporates the positive attributes of plan adaptability and plan stability, while simultaneously avoiding their shortcomings. It has two main objectives:

1. prevent performance regressions in the face of database system changes
2. offer performance improvements by gracefully adapting to database system changes

A managed SQL statement is one for which SPM has been enabled. SPM can be configured to work automatically or it can be manually controlled either wholly or partially (described later). SPM helps prevent performance regressions by enabling the detection of plan changes for managed SQL statements. For this purpose, SPM maintains, on disk, a plan history consisting of different execution plans generated for each managed SQL statement. An enhanced version of the Oracle optimizer, called SPM aware optimizer, accesses, uses, and manages this information which is stored in a repository called the SQL Management Base (SMB).

The plan history enables the SPM aware optimizer to determine whether the best-cost plan it has produced using the cost-based method is a brand new plan or not. A brand new plan represents a plan change that has potential to cause performance regression. For this reason, the SPM aware optimizer does not choose a brand new best-cost plan. Instead, it chooses from a set of accepted plans. An accepted plan is one that has been either verified to not cause performance regression or designated to have good performance. A set of accepted plans is called a SQL plan baseline, which represents a subset of the plan history.

A brand new plan is added to the plan history as a non-accepted plan. Later, an SPM utility verifies its performance, and keeps it as a non-accepted plan if it will cause a performance regression, or changes it to an accepted plan if it will provide a performance improvement. The plan performance verification process ensures both plan stability and plan adaptability.

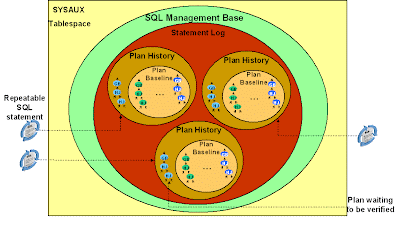

The figure below shows the SMB containing the plan history for three SQL statements. Each plan history contains some accepted plans (the SQL plan baseline) and some non-accepted plans.



(Click on the image for a larger view.)

You can create a SQL plan baseline in several ways: using a SQL Tuning Set (STS); from the cursor cache; exporting from one database and importing into another; and automatically for every statement. Let's look at each in turn. The examples in this blog entry use the Oracle Database Sample Schemas so you can try them yourself.

Creating SQL plan baselines from STS

If you are upgrading from 10gR2 or have an 11g test system, you might already have an STS containing some or all of your SQL statements. This STS might contain plans that perform satisfactorily. Let's call this STS MY_STS. You can create a SQL plan baseline from this STS as follows:

SQL> variable pls number;
SQL> exec :pls := dbms_spm.load_plans_from_sqlset(sqlset_name => 'MY_STS', -
>                   basic_filter => 'sql_text like ''select%p.prod_name%''');

This will create SQL plan baselines for all statements that match the specified filter.

Creating SQL plan baselines from cursor cache

You can automatically create SQL plan baselines for any cursor that is currently in the cache as follows:

SQL> exec :pls := dbms_spm.load_plans_from_cursor_cache( -
>                   attribute_name => 'SQL_TEXT', -
>                   attribute_value => 'select%p.prod_name%');

This will create SQL plan baselines for all statements whose text matches the specified string. Several overloaded variations of this function allow you to filter on other cursor attributes.

Creating SQL plan baselines using a staging table

If you already have SQL plan baselines (say on an 11g test system), you can export them to another system (a production system for instance).

First, on the test system, create a staging table and pack the SQL plan baselines you want to export:

SQL> exec dbms_spm.create_stgtab_baseline(table_name => 'MY_STGTAB', -
>           table_owner => 'SH');

PL/SQL procedure successfully completed.

SQL> exec :pls := dbms_spm.pack_stgtab_baseline( -
>                   table_name => 'MY_STGTAB', -
>                   table_owner => 'SH', -
>                   sql_text => 'select%p.prod_name%');

This will pack all SQL plan baselines for statements that match the specified filter. The staging table, MY_STGTAB, is a regular table that you should export to the production system using Datapump Export.

On the production system, you can now unpack the staging table to create the SQL plan baselines:

SQL> exec :pls := dbms_spm.unpack_stgtab_baseline( -
>                   table_name => 'MY_STGTAB', -
>                   table_owner => 'SH', -
>                   sql_text => 'select%p.prod_name%');

This will unpack the staging table and create SQL plan baselines. Note that the filter for unpacking the staging table is optional and may be different than the one used during packing. This means that you can pack several SQL plan baselines into a staging table and selectively unpack only a subset of them on the target system.

Creating SQL plan baselines automatically

You can create SQL plan baselines for all repeatable statements automatically by setting the parameter optimizer_capture_sql_plan_baselines to TRUE (default is FALSE). The first plan captured for any statement is automatically accepted and becomes part of the SQL plan baseline, so enable this parameter only when you are sure that the default plans are performing well.

You can use the automatic plan capture mode when you have upgraded from a previous database version. Set optimizer_features_enable to the earlier version and execute your workload. Every repeatable statement will have its plan captured thus creating SQL plan baselines. You can reset optimizer_features_enable to its default value after you are sure that all statements in your workload have had a chance to execute.

Note that this automatic plan capture occurs only for repeatable statements, that is, statements that are executed at least twice. Statements that are only executed once will not benefit from SQL plan baselines since accepted plans are only used in subsequent hard parses.

The following example shows a plan being captured automatically when the same statement is executed twice:

SQL> alter session set optimizer_capture_sql_plan_baselines = true;

Session altered.

SQL> var pid number
SQL> exec :pid := 100;

PL/SQL procedure successfully completed.

SQL> select p.prod_name, s.amount_sold, t.calendar_year
2    from sales s, products p, times t
3    where s.prod_id = p.prod_id
4      and s.time_id = t.time_id
5      and p.prod_id < :pid;

PROD_NAME AMOUNT_SOLD CALENDAR_YEAR
--------- ----------- -------------
...
9 rows selected.

SQL> select p.prod_name, s.amount_sold, t.calendar_year
2    from sales s, products p, times t
3    where s.prod_id = p.prod_id
4      and s.time_id = t.time_id
5      and p.prod_id < :pid;

PROD_NAME AMOUNT_SOLD CALENDAR_YEAR
--------- ----------- -------------
...
9 rows selected.

SQL> alter session set optimizer_capture_sql_plan_baselines = false;

Session altered.

Automatic plan capture will not occur for a statement if a stored outline exists for it and is enabled and the parameter use_stored_outlines is TRUE. In this case, turn on incremental capture of plans into an STS using the function capture_cursor_cache_sqlset() in the DBMS_SQLTUNE package. After you have collected the plans for your workload into the STS, manually create SQL plan baselines using the method described earlier. Then, disable the stored outlines or set use_stored_outlines to FALSE. From now on, SPM will manage your workload and stored outlines will not be used for those statements.

In this article, we have seen how to create SQL plan baselines. In the next, we will describe the SPM aware optimizer and how it uses SQL plan baselines.
